Race - Foilboard Design

Postby Florian Scharscher » Tue Jul 22, 2014 3:15 am

Hi everyone,

I'm planing on building a race - foilboard in polystyrene and epoxy to go with the Moses Vo-Race.
At this stage I'd appreciate if someone could advice the overall length + width and the distances between the footstraps from your experiences.

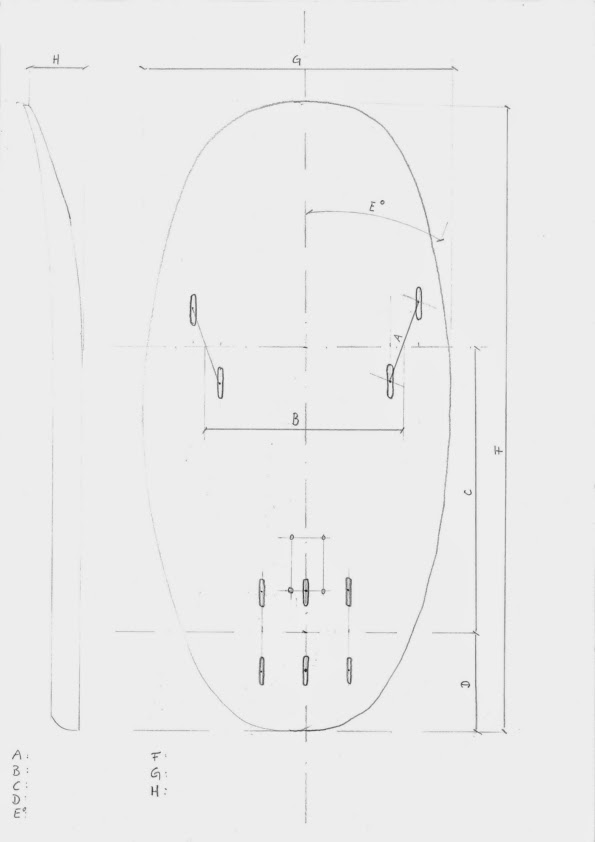

You can refer to the handscetch below if you want...

Good Winds,
Flo


SpunMonkey
Medium Poster
Posts: 82
Joined: Thu Dec 19, 2013 1:42 am
Style: Directionals, foils, and sailing
Gear: Foils, underwater and in the air
Brand Affiliation: None
Has thanked: 1 time
Been thanked: 0

Re: Race - Foilboard Design

Postby SpunMonkey » Tue Jul 22, 2014 3:45 am

God luck and have fun building!

Overall Length seems to work well at 5'
Width at 21"

The "B" distance you use in your sketch I measure a little bit different. 1.75" off of center is where I've been putting the inboard strap insert. Then ( "E" ) 45º and your next strap insert at 6.5"("A").

Regarding stance. Seems like 24-27" on the insides of peoples feet seem normal.

Tone
Very Frequent Poster
Posts: 2291
Joined: Tue Dec 23, 2003 2:34 pm
Has thanked: 5 times
Been thanked: 30 times

Re: Race - Foilboard Design

Postby Tone » Tue Jul 22, 2014 9:36 am

I think your front strap positions are too wide, you don't need that kind of leverage as far as I can tell.

Most boards seem to have the straps pretty central.

nice idea though :)

User avatar
cglazier
Very Frequent Poster
Posts: 2640
Joined: Sat Apr 13, 2002 1:00 am
Gear: Naish, Flysurfer, Alpine, Moses
Brand Affiliation: None
Location: Vancouver, Canada
Has thanked: 65 times
Been thanked: 119 times

Re: Race - Foilboard Design

Postby cglazier » Tue Jul 22, 2014 12:25 pm

I agree with footstrap comments above.
And you don't need three footstrap positions in the back, you will only use the centre one.

:wink:

ozchrisb
Frequent Poster
Posts: 289
Joined: Sat Dec 29, 2012 2:59 am
Brand Affiliation: None
Has thanked: 0
Been thanked: 0

Re: Race - Foilboard Design

Postby ozchrisb » Tue Jul 22, 2014 4:56 pm

Yup get the straps on the center line.

User avatar
Florian Scharscher
Rare Poster
Posts: 26
Joined: Thu Feb 10, 2011 8:29 pm
Style: wakestyle/ wave
Gear: Kites
Brand Affiliation: Team rider
Location: Australia
Has thanked: 0
Been thanked: 0
Contact:

Re: Race - Foilboard Design

Postby Florian Scharscher » Wed Jul 23, 2014 2:02 am

Thank for your feedback guys, expecially SpunMonkey.
SpunMonkey I assume you mean from boardcenter to inner footstrap insert =1.75", correct?

How much nose rocker would you guys reckon?

Good to know that one footstrap on the backfoot will do the job...
Otherwise please don't take my rought hand scetch for granted.
It's meant as an indication for the dimensions only, nor the outline or the front footstrap placement need to be like this.

Good winds from wet and windy Perth,
Flo

SpunMonkey
Medium Poster
Posts: 82
Joined: Thu Dec 19, 2013 1:42 am
Style: Directionals, foils, and sailing
Gear: Foils, underwater and in the air
Brand Affiliation: None
Has thanked: 1 time
Been thanked: 0

Re: Race - Foilboard Design

Postby SpunMonkey » Wed Jul 23, 2014 3:32 am

Florian Scharscher wrote: SpunMonkey I assume you mean from boardcenter to inner footstrap insert =1.75", correct?
Seems to work for me. Cant finish a tack yet, though when I'm hanging from the kite in a duck tack attempt I can have both feet comfortably in the front straps with this separation. Also feels good upwind and reaching.

User avatar
vvs
Rare Poster
Posts: 40
Joined: Thu Jan 16, 2014 9:28 am
Gear: flysurfer, best, slingshot
Brand Affiliation: None
Location: Ukraine
Has thanked: 0
Been thanked: 0

Re: Race - Foilboard Design

Postby vvs » Wed Jul 23, 2014 5:51 am

Florian Scharscher wrote:
How much nose rocker would you guys reckon?


Flo
... My board has nose rocker11 cm . It is not much, since the thickness of the board 9cm.

SpunMonkey
Medium Poster
Posts: 82
Joined: Thu Dec 19, 2013 1:42 am
Style: Directionals, foils, and sailing
Gear: Foils, underwater and in the air
Brand Affiliation: None
Has thanked: 1 time
Been thanked: 0

Re: Race - Foilboard Design

Postby SpunMonkey » Wed Jul 23, 2014 1:02 pm

This drawing can be helpful
Attachments
Spotz Board dimensions.png
Spotz Board dimensions.png (229.01 KiB) Viewed 2284 times

ozchrisb
Frequent Poster
Posts: 289
Joined: Sat Dec 29, 2012 2:59 am
Brand Affiliation: None
Has thanked: 0
Been thanked: 0

Re: Race - Foilboard Design

Postby ozchrisb » Wed Jul 23, 2014 6:13 pm

Good call on the 5 hole strap inserts! That will help a lot with tuning.
